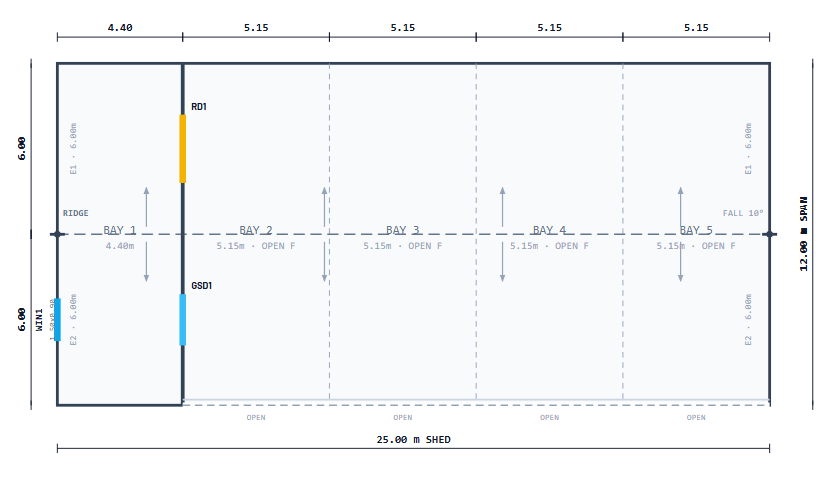

Standard layout shown. Tap the plan to enlarge. Bay widths, door and window positions can all be changed to suit your site.
Rural & machinery · SS-RUR-250-120

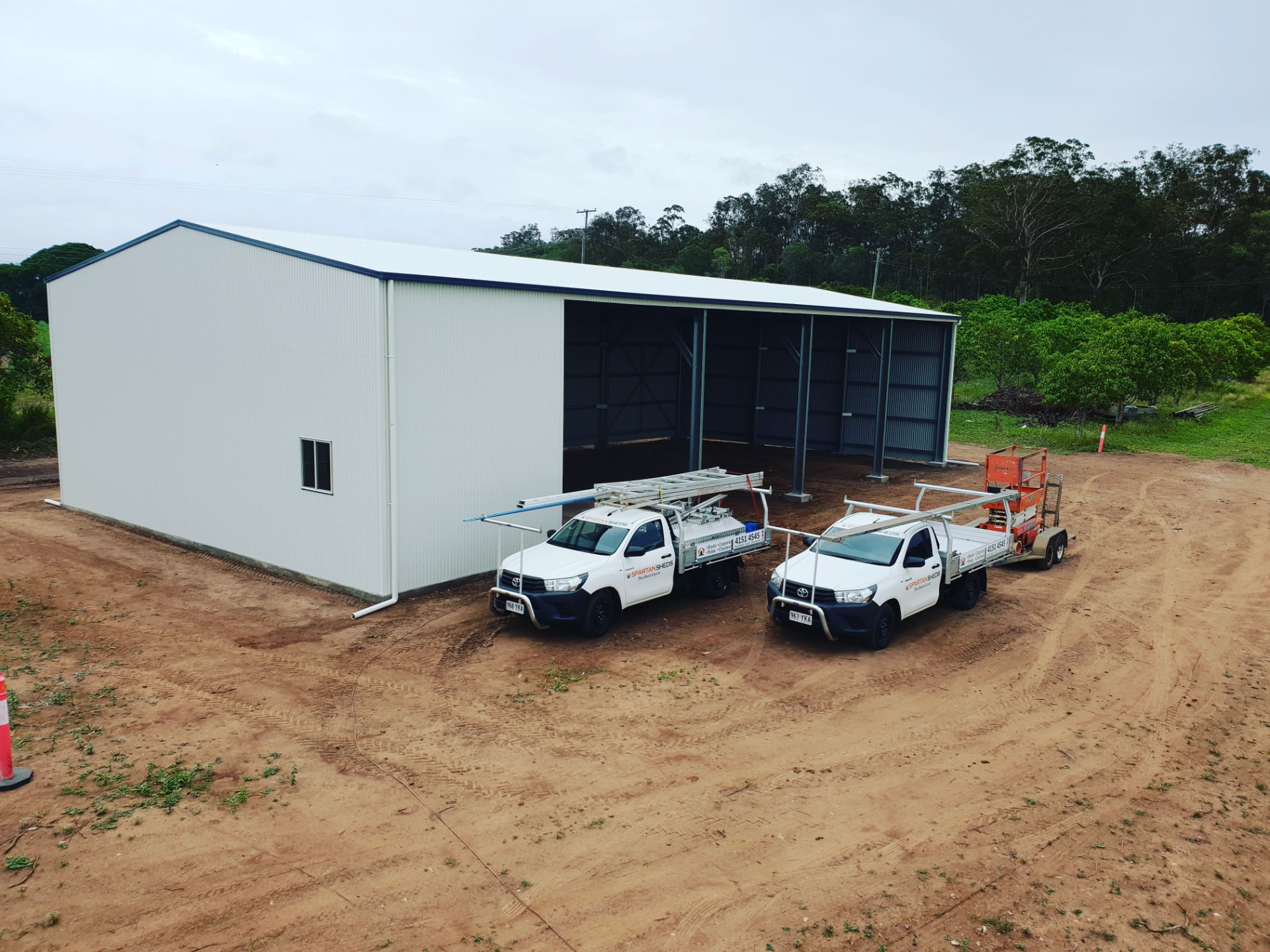

Machinery Shed 25 x 12
Enclosed workshop bay plus four open machinery bays
A 25m x 12m farm shed combining a fully enclosed 4.4m workshop bay with four 5.15m open machinery bays. The enclosed end gives you a secure, lockable space for tools, workbenches and smaller gear, while the open bays keep tractors and implements easy to get in and out of.
- 12m
- Width
- 25m
- Length
- 5.2m
- Wall height
Gable roof · 5 bays · 12m x 25m x 5.2m
What is included
- Enclosed 4.4m workshop bay - great for tools and workshop storage
- 1 x roller door into the workshop bay
- Glass sliding door into the workshop bay
- Window in the enclosed workshop bay
- 4 x 5.15m open bays for machinery
- 5.2m wall height (5m Clear on open bays)
- Heavy-duty columns and rafters
- COLORBOND® roof and wall cladding
- Site-specific engineering and certification
Standard specification
- Width
- 12.0m
- Length
- 25.0m
- Height
- 5.2m walls
- Roof profile
- Gable
- Bays
- 1 x enclosed 4.4m bay plus 4 x 5.15m open bays
- Workshop bay
- 1x Roller door - 2400w x2100h 1 x Glass sliding door - 1880w x 2100h 1 x Window - 900h x 1200w
- Open bays
- 4 x 5.15m
- Steel
- 100% Australian BlueScope and COLORBOND®
Standard specification shown. Sizes can all be changed to suit your site.
Popular options
Every design can be resized and reconfigured. These are the changes people make to this one most often.
- Enclose further bays for extra lock-up storage
- Roller or sliding doors added to selected bays
- Concrete floor to part or all of the building
- Gutters plumbed to tanks for rainwater harvesting
- Higher eave to suit taller machinery
Good to know
- Measure your tallest machine with the auger or comb up
- Open-front buildings are engineered for internal wind pressure
- Building and Footings are site specific engineered to wind and soil conditions, not a standard spec
- Large rural buildings still require engineering and certification
Standard on every Spartan Sheds build
Built to a higher standard
Cast-in vermin rebate as standard
The slab is formed with a rebate that the wall sheet sits into, so the base line is sealed. No open gap for rodents, snakes. A 3mm gap is left at the bottom of the sheet to protect your Colorbond warranty, and for ease of hosing out.
Custom corner and door flashings
Corner, and door flashings are made to suit each build rather than pulled off a generic kit shelf, so all corners finish tight and straight, leaving no gaps or sharp edges.
Welded-type frame connections
Many standard kit sheds use light-gauge folded brackets at key structural connections. Spartan Sheds upgrades these critical junctions with heavy-duty welded steel plate connections and high-tensile structural bolts, with knee, apex and base plates engineered to suit the site-specific wind classification.
100% Australian BlueScope and COLORBOND® steel
Roof, walls, gutters and framing in Australian-made steel with the warranties that come with it, specified for our coastal and inland conditions.
Gable or skillion roof profile
Every design in the range can be built with a classic pitched gable roof or a single-slope skillion roof, chosen to suit the look you want, the site, and any height or setback limits on your block.
Site-specific engineering and drawings
Every build is engineered to the wind classification, soil and exposure of your actual block, not to a generic catalogue spec, and the drawings come with it for approval.
Priced to your site
We do not publish prices for a reason: wind classification, soil, slab and earthworks, truck access, coastal exposure and the council approval pathway all change from block to block, sometimes between neighbours. Send us the design code and your address and you will get a real, itemised quote at no cost.
