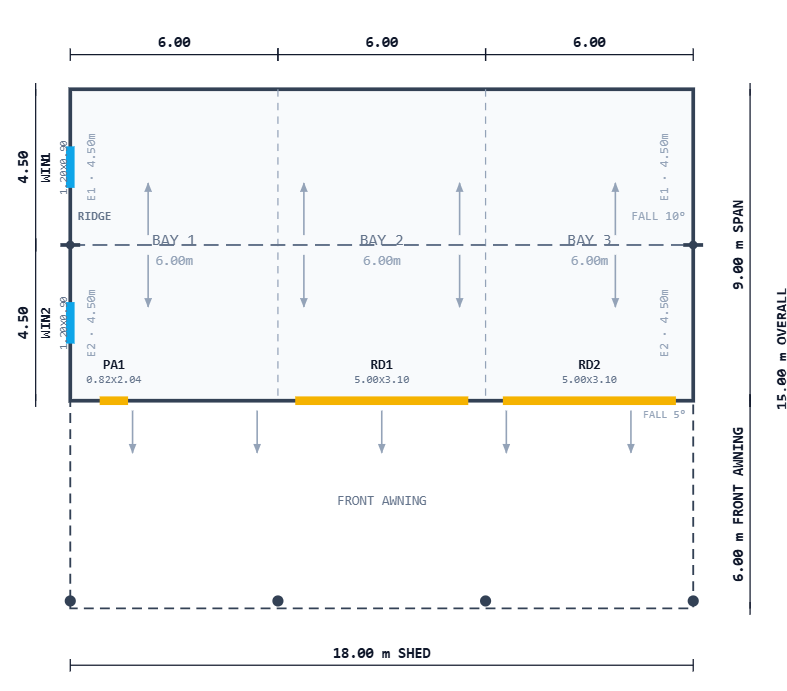

Standard layout shown. Tap the plan to enlarge. Bay widths, door and window positions can all be changed to suit your site.
Acreage sheds · SS-ACR-180-90-AWN

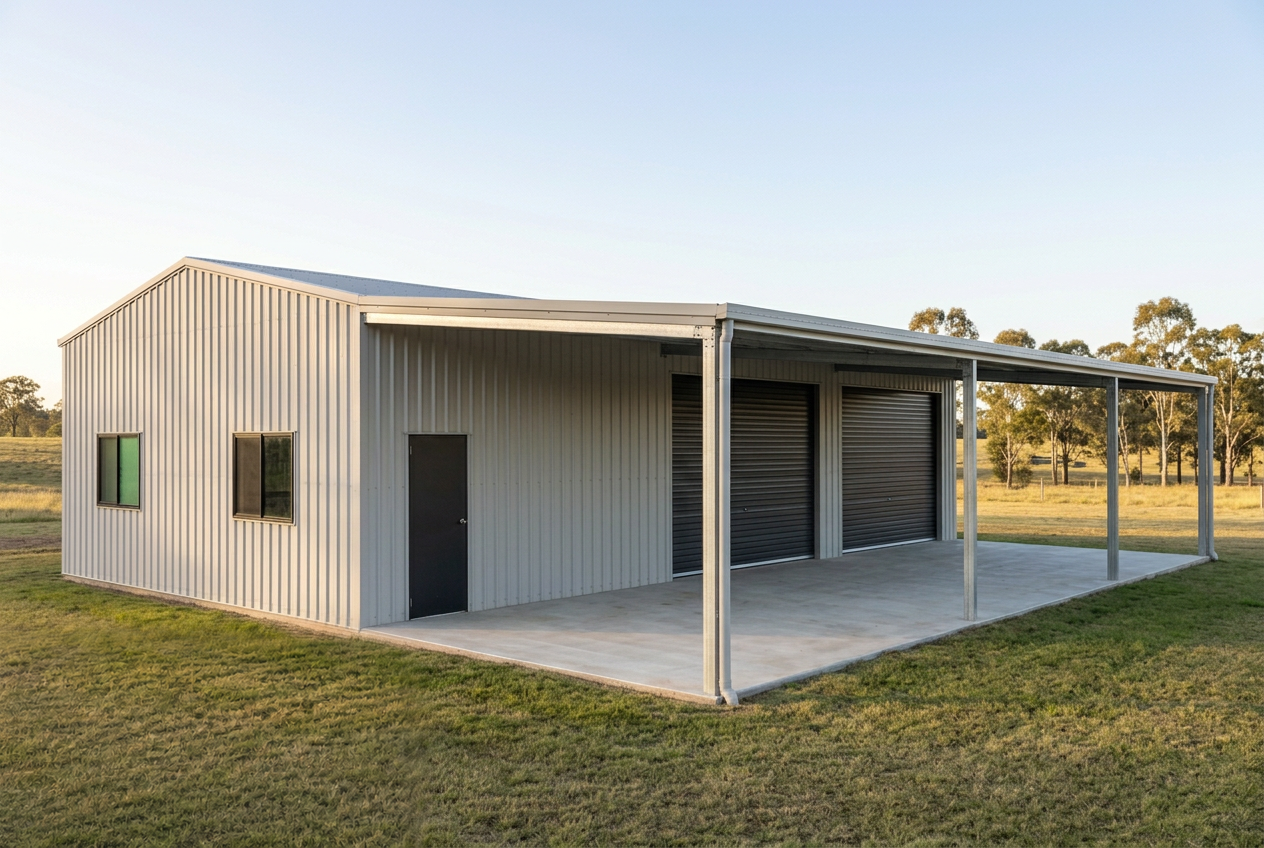

Acreage Shed with Awning 18 x 9
Secure storage with a full-length covered work area
A substantial three-bay acreage shed with secure storage and a 6m deep full-length front awning. Two wide motorised roller doors provide easy vehicle and equipment access, while the covered apron creates practical space for parking, maintenance and outdoor work.
- 9m
- Width
- 18m
- Length
- 3.6m
- Wall height
Gable roof · 3 bays · 9m x 18m x 3.6m
What is included
- 18m x 9m enclosed three-bay shed - 3x 6m bays
- 6m deep attached front awning across the full 18m length
- 2 x Double Wide roller doors with Merlin motors
- 1 x personal access door
- 2 x windows
- COLORBOND® roof, walls and gutters
- Custom corner and doorway flashings
- Cast-in vermin rebate to the slab
- Site-specific engineering and certification
Standard specification
- Shed width
- 18.0m
- Shed span
- 9.0m
- Wall height
- 3.6m
- Roof profile
- Gable with attached skillion awning
- Bays
- 3 x 6.0m bays
- Front awning
- 18.0m long x 6.0m deep
- Overall depth
- 15.0m including awning
- Roller doors
- 2 x 5.0m wide x 3.1m high
- Roller door motors
- Merlin motors
- PA door
- 1 x personal access door
- Windows
- 2 x 1200mm wide x 900mm high
- Steel
- 100% Australian BlueScope and COLORBOND®
Standard specification shown. Sizes can all be changed to suit your site.
Popular options
Every design can be resized and reconfigured. These are the changes people make to this one most often.
- Enclose one or both ends of the awning for extra weather protection
- Add roof insulation, ventilation or additional windows
- Add internal walls to separate storage and workshop areas
- Add power, lighting and workshop outlets on a full build
Good to know
- The 6m awning is additional to the 18m x 9m enclosed shed footprint
- Merlin motors are included on both roller doors
- Final engineering and approval requirements depend on the site
Standard on every Spartan Sheds build
Built to a higher standard
Cast-in vermin rebate as standard
The slab is formed with a rebate that the wall sheet sits into, so the base line is sealed. No open gap for rodents, snakes. A 3mm gap is left at the bottom of the sheet to protect your Colorbond warranty, and for ease of hosing out.
Custom corner and door flashings
Corner, and door flashings are made to suit each build rather than pulled off a generic kit shelf, so all corners finish tight and straight, leaving no gaps or sharp edges.
Welded-type frame connections
Many standard kit sheds use light-gauge folded brackets at key structural connections. Spartan Sheds upgrades these critical junctions with heavy-duty welded steel plate connections and high-tensile structural bolts, with knee, apex and base plates engineered to suit the site-specific wind classification.
100% Australian BlueScope and COLORBOND® steel
Roof, walls, gutters and framing in Australian-made steel with the warranties that come with it, specified for our coastal and inland conditions.
Gable or skillion roof profile
Every design in the range can be built with a classic pitched gable roof or a single-slope skillion roof, chosen to suit the look you want, the site, and any height or setback limits on your block.
Site-specific engineering and drawings
Every build is engineered to the wind classification, soil and exposure of your actual block, not to a generic catalogue spec, and the drawings come with it for approval.
Priced to your site
We do not publish prices for a reason: wind classification, soil, slab and earthworks, truck access, coastal exposure and the council approval pathway all change from block to block, sometimes between neighbours. Send us the design code and your address and you will get a real, itemised quote at no cost.
