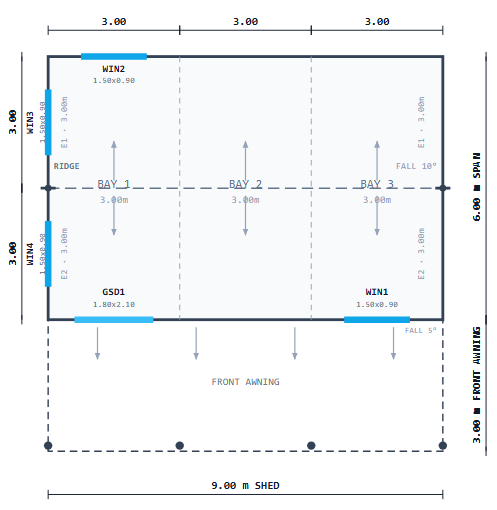

Standard layout shown. Tap the plan to enlarge. Bay widths, door and window positions can all be changed to suit your site.
Garages & residential · SS-WKD-90-60
Weekender 9 x 6
A simple shed base for weekends on the block

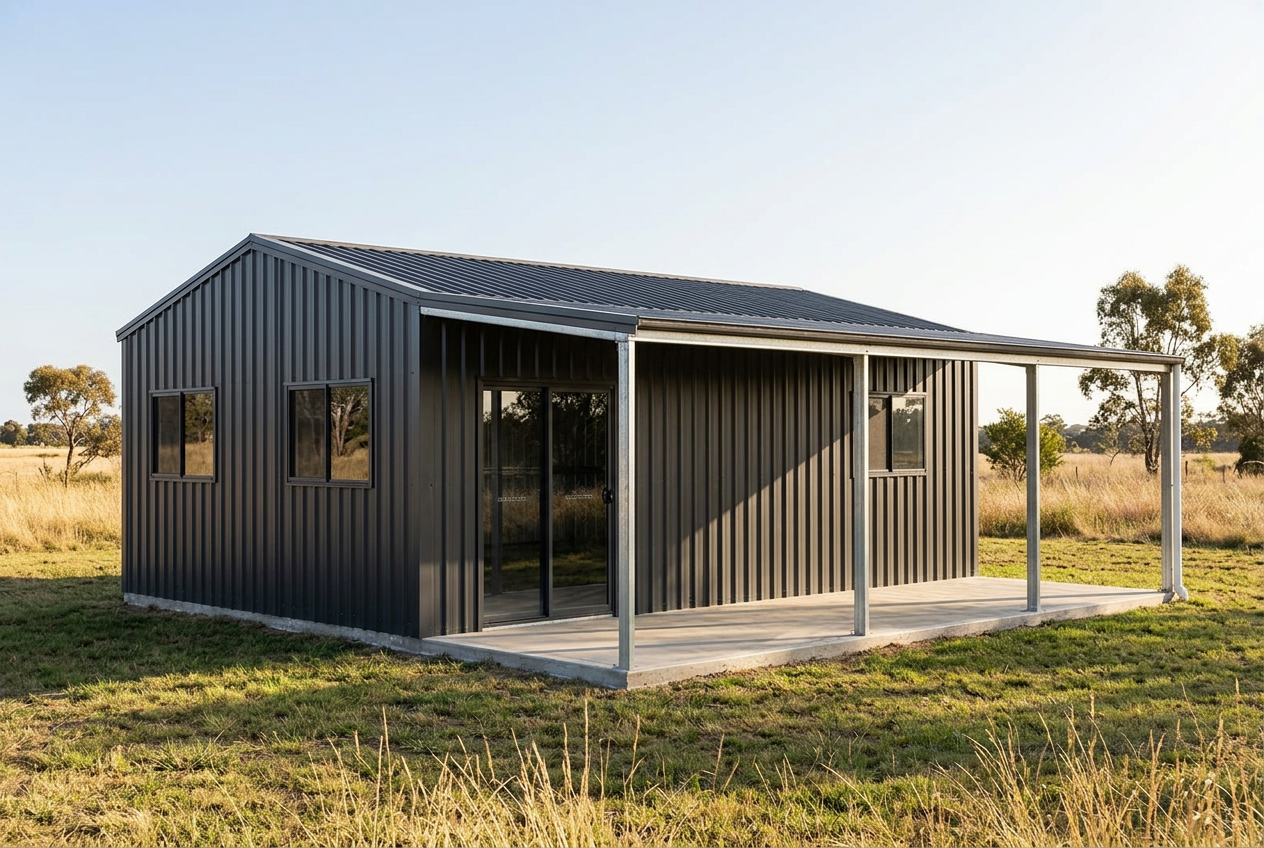

A practical 9m x 6m shed with a 3m deep front awning, glass sliding door and four windows. It is designed as a basic shed for weekends on the block, with useful enclosed space and a covered outdoor area.
- 6m
- Width
- 9m
- Length
- 2.7m
- Wall height
Gable roof · 3 bays · 6m x 9m x 2.7m
What is included
- 9m x 6m enclosed three-bay shed
- 3m deep front patio / awning across the full 9m length
- 1 x glass sliding door
- 4 x windows
- 2.7m wall height
- COLORBOND® roof, walls and gutters
- Custom corner and doorway flashings
- Cast-in vermin rebate to the slab
- Site-specific engineering and drawings
Standard specification
- Width
- 6.0m
- Length
- 9.0m
- Wall height
- 2.7m
- Roof profile
- Gable with attached skillion awning
- Bays
- 3 x 3.0m bays
- Front awning
- 9.0m long x 3.0m deep
- Glass sliding door
- 1 x 1800 wide x 2100 high
- Windows
- 4 x windows - 1500w x 900h
- Building classification
- Class 10a - Non Habitable
- Internal finish
- Basic shed only - no internal lining allowance
- Steel
- 100% Australian BlueScope and COLORBOND®
Standard specification shown. Sizes can all be changed to suit your site.
Popular options
Every design can be resized and reconfigured. These are the changes people make to this one most often.
- Choose COLORBOND® colours to suit the block
- Add roof insulation or a solar roof ventilator
- Add power and lighting packages on a full build
- Adjust window and glass sliding door positions to suit the site
Good to know
- NOT CLASS 1A - this design is not a dwelling
- Basic shed only, with no allowance for internal wall or ceiling lining
- The 3m awning is additional to the 9m x 6m enclosed shed footprint
- Final engineering, siting and approval requirements depend on the property
Standard on every Spartan Sheds build
Built to a higher standard
Cast-in vermin rebate as standard
The slab is formed with a rebate that the wall sheet sits into, so the base line is sealed. No open gap for rodents, snakes. A 3mm gap is left at the bottom of the sheet to protect your Colorbond warranty, and for ease of hosing out.
Custom corner and door flashings
Corner, and door flashings are made to suit each build rather than pulled off a generic kit shelf, so all corners finish tight and straight, leaving no gaps or sharp edges.
Welded-type frame connections
Many standard kit sheds use light-gauge folded brackets at key structural connections. Spartan Sheds upgrades these critical junctions with heavy-duty welded steel plate connections and high-tensile structural bolts, with knee, apex and base plates engineered to suit the site-specific wind classification.
100% Australian BlueScope and COLORBOND® steel
Roof, walls, gutters and framing in Australian-made steel with the warranties that come with it, specified for our coastal and inland conditions.
Gable or skillion roof profile
Every design in the range can be built with a classic pitched gable roof or a single-slope skillion roof, chosen to suit the look you want, the site, and any height or setback limits on your block.
Site-specific engineering and drawings
Every build is engineered to the wind classification, soil and exposure of your actual block, not to a generic catalogue spec, and the drawings come with it for approval.
Priced to your site
We do not publish prices for a reason: wind classification, soil, slab and earthworks, truck access, coastal exposure and the council approval pathway all change from block to block, sometimes between neighbours. Send us the design code and your address and you will get a real, itemised quote at no cost.
